Description

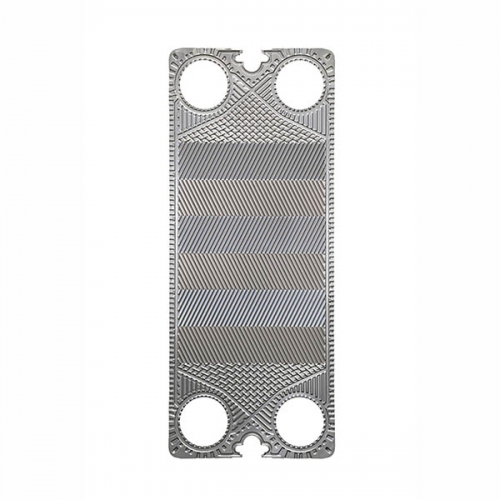

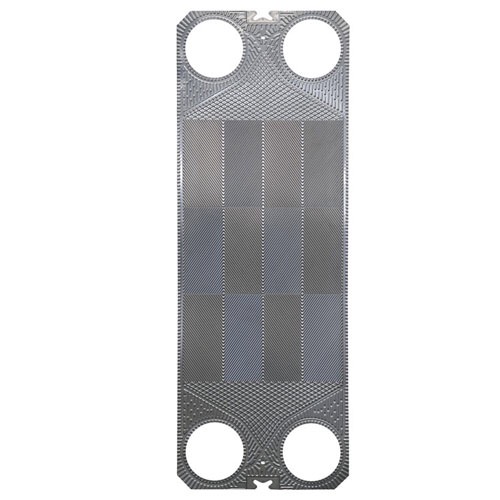

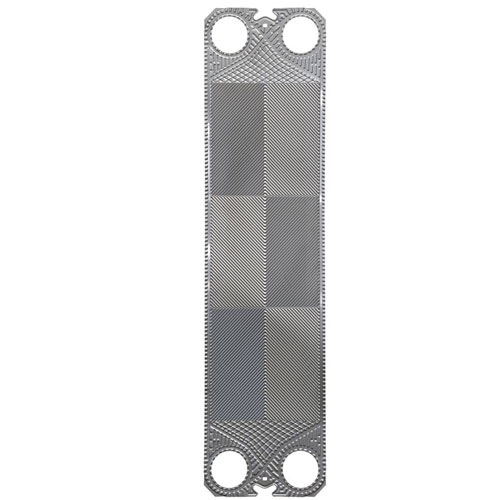

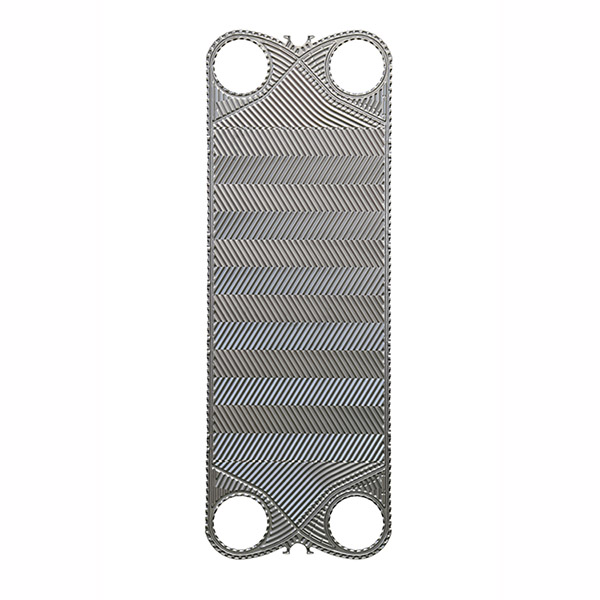

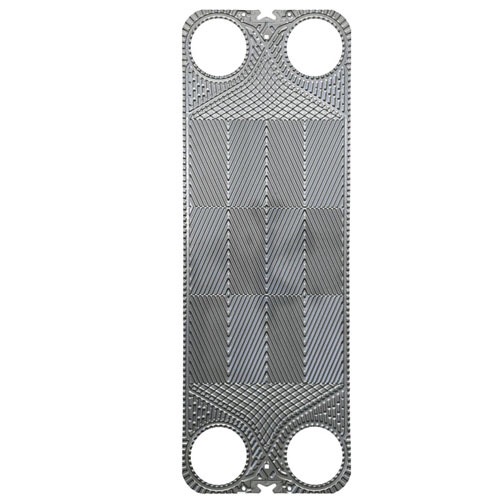

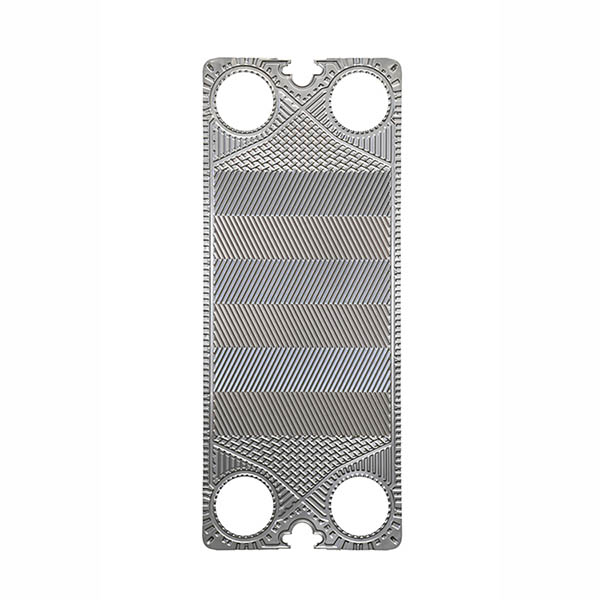

Spare Parts for Vicarb Plate Heat Exchanger.

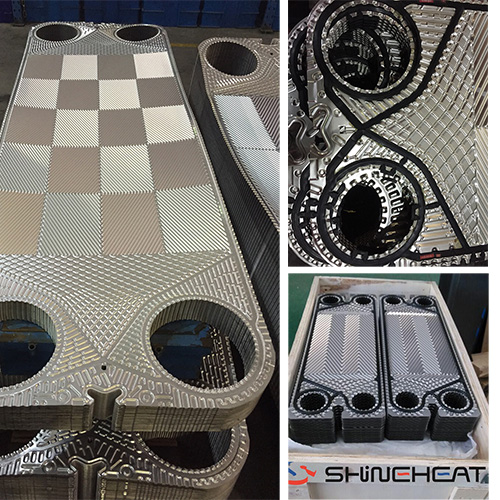

Identical replacement Plates and Gaskets for Vicarb are available for service and mantainance.
Identical replacement Plates and Gaskets for Vicarb are available for service and mantainance.
| VICARB PLATE SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |
| Vicarb | V4 | 3 | φ30 | 430*62 | 500*125 | 0.04 |
| V8/VU8 | 3 | φ49 | 554*100 | 640*188 | 0.08 | |
| V13 | 3.5 | φ70 | 625*130 | 739*241 | 0.13 | |
| V20 | 3.5 | φ70 | 875*130 | 989*241 | 0.2 | |
| V28 | 4 | φ100 | 882*234 | 1052*393 | 0.28 | |
| V45 | 4 | φ100 | 1302*234 | 1472*393 | 0.45 | |
| V60 | 3.9 | φ155 | 1280*310 | 1514*540 | 0.6 | |
| V100 | 3.9 | φ155 | 2000*310 | 2230*540 | 1 | |
