Description

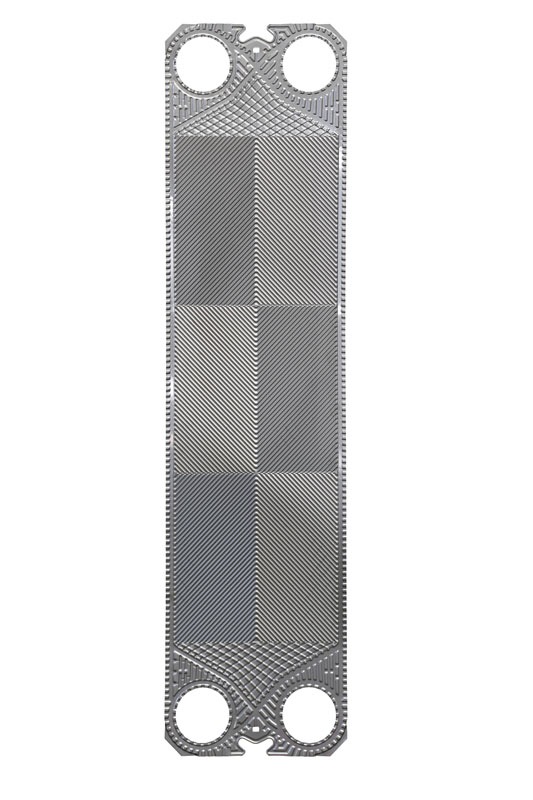

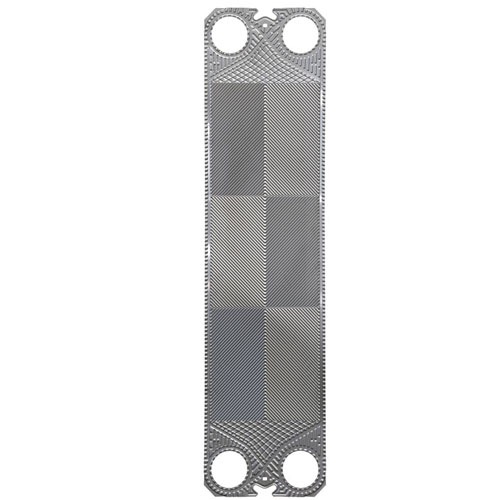

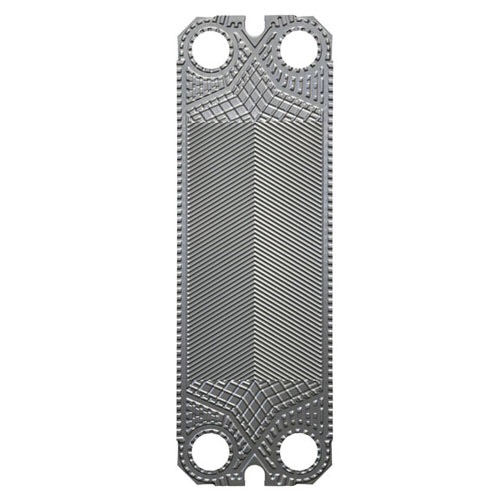

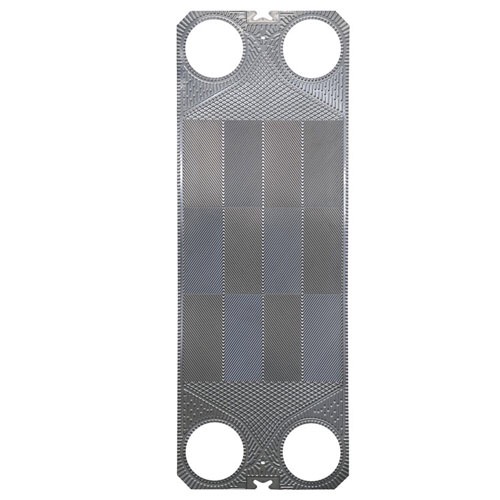

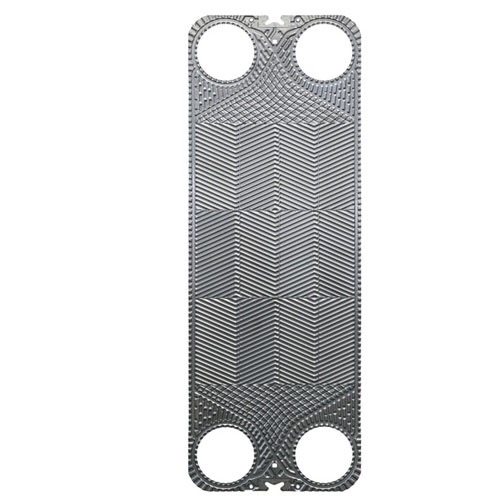

Spare Parts for Tranter Plate Heat Exchanger.
Identical replacement Plates and Gaskets for Tranter are available for service and mantainance.
Identical replacement Plates and Gaskets for Tranter are available for service and mantainance.
| TRANTER PLATE SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |

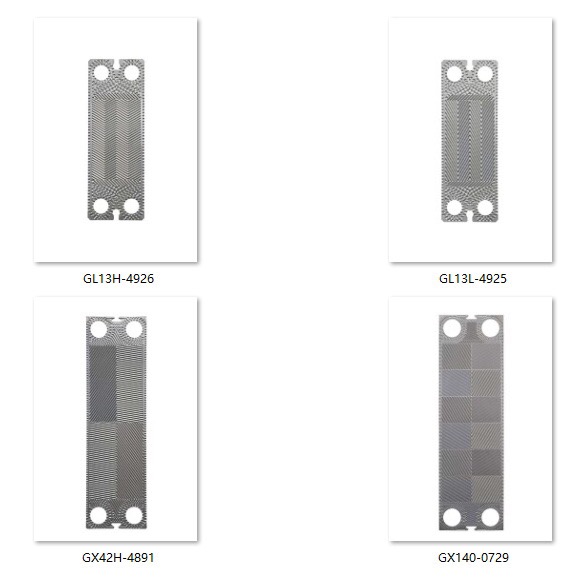

| TRANTER | GL13 | 3 | φ67 | 592*135 | 714*248 | 0.13 |
| GX12 | 3 | φ67 | 592*135 | 714*250 | 0.13 | |
| GX18 | 3 | φ67 | 822*135 | 941*248 | 0.18 | |
| GC16 | 1.9 | φ55 | 592*135 | 700*250 | 0.16 | |
| GC26 | 4 | φ105 | 779*226.5 | 941*384 | 0.26 | |
| GX26 | 3.3 | φ105 | 779*226.5 | 941*384 | 0.26 | |
| GX42 | 3.3 | φ105 | 1189*226 | 1352*385 | 0.42 | |
| GX51 | 3.25 | φ145 | 1143*300 | 1354*507 | 0.51 | |
| GC51 | 4 | φ145 | 1143*300 | 1352*505 | 0.51 | |
| GC60 | 4.4 | φ216 | 910*420 | 1196*700 | 0.6 | |
| GX60 | 3.5 | φ194 | 910*420 | 1196*704 | 0.6 | |
| GX100 | 3.5 | φ194 | 1490*420 | 1776*704 | 1 | |
| GX140 | 3.5 | φ194 | 2070*420 | 2356*704 | 1.4 | |
| GX64 | 3 | φ152 | 1320*285 | 1552*506 | 0.64 | |
| GX91 | 3 | φ152 | 1800*285 | 2032*506 | 0.91 | |
| GX118 | 2.9 | φ152 | 2280*285 | 2512*506 | 1.18 | |
