Description

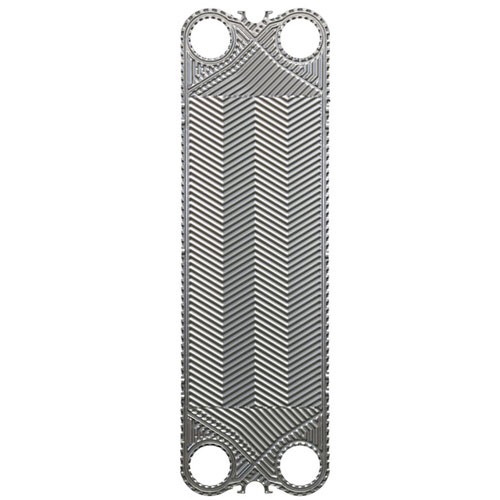

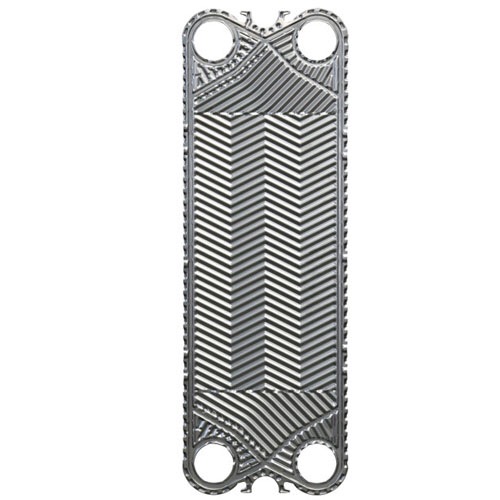

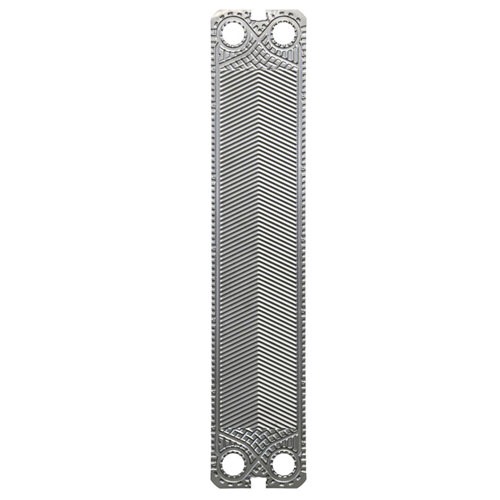

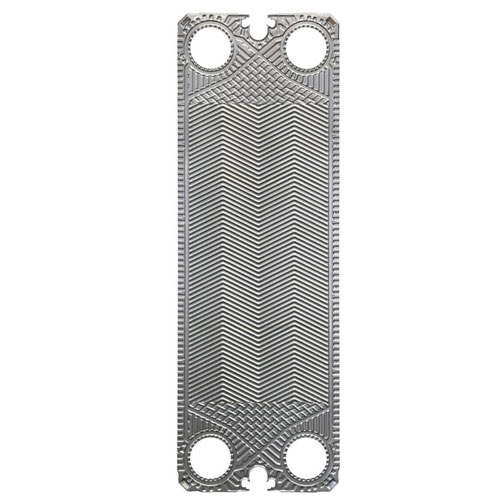

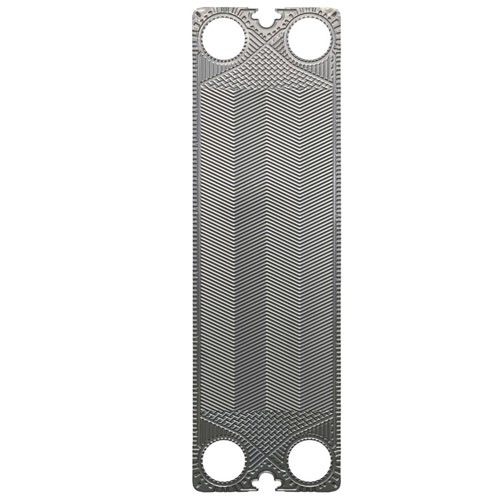

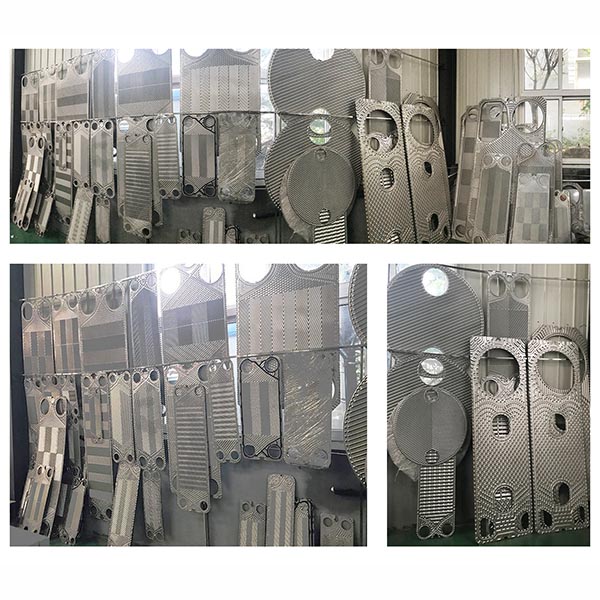

Spare parts for Plate Heat Exchanger
Identical replacement Plates and Gaskets for Funke are available for service and mantainance.
Identical replacement Plates and Gaskets for Funke are available for service and mantainance.
| FUNKE PLATE SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |
| Funke | FP04 | 2.1 | φ30 | 336*65 | 393*122 | 0.04 |
| FP08 | 2.1 | φ30 | 336*65 | 733*122 | 0.08 | |
| FP05 | 2.2 | φ29 | 381*70 | 449*140 | 0.04 | |
| FP09 | 2.2 | φ29 | 676*70 | 744*140 | 0.08 | |
| FP10 | 2.34 | φ57 | 494*126 | 598*230 | 0.1 | |
| FP16 | 2.34 | φ57 | 694*126 | 798*230 | 0.16 | |
| FP22 | 2.34 | φ57 | 894*126 | 998*230 | 0.22 | |
| FP14 | 2 | φ75 | 590*135 | 700*248 | 0.14 | |
| FP20 | 2 | φ75 | 819*135 | 929*248 | 0.2 | |
| FP205 | 2.6 | φ100 | 719*225 | 880*381 | 0.205 | |
| FP31 | 2.6 | φ100 | 894*225 | 1055*381 | 0.31 | |
| FP40 | 2.6 | φ100 | 1141*225 | 1302*381 | 0.4 | |
| FP50 | 2.6 | φ100 | 1388*225 | 1549*381 | 0.5 | |
| FP71 | 2.6 | φ100 | 1882*225 | 2042*381 | 0.72 | |
| FP41 | 3 | φ150 | 941.5*290 | 1156*505 | 0.41 | |
| FP60 | 3 | φ150 | 1306*290 | 1521*505 | 0.6 | |
| FP80 | 3 | φ150 | 1671*290 | 1886*505 | 0.8 | |
| FP42 | 2.6 | φ148 | 941.8*290 | 1156*506 | 0.41 | |
| FP62 | 2.6 | φ148 | 2306.9*290 | 1521.1*506 | 0.62 | |
| FP82 | 2.6 | φ148 | 1672*290 | 1886.2*506 | 0.82 | |
| FP112 | 2.6 | φ148 | 2158.8*290 | 2373*506 | 1.1 | |
| FP130 | 2.6 | φ200 | 1851*395 | 2120*660 | 1.2 | |
| FP100 | 2.6 | φ200 | 1491*395 | 1760*660 | 1 | |
| FP70 | 2.6 | φ200 | 1131*395 | 1400*660 | 0.7 | |
| FP405 | 2.6 | φ200 | 771*395 | 1040*660 | 0.4 | |
