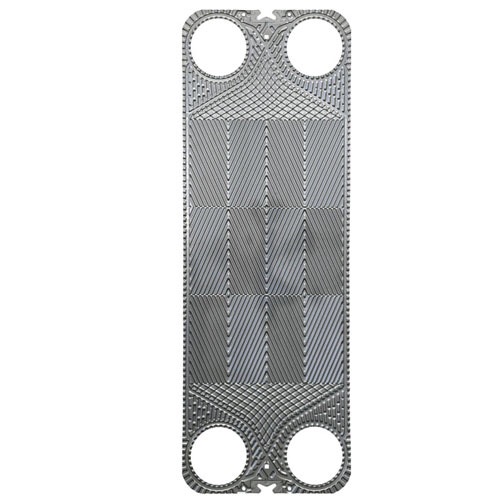

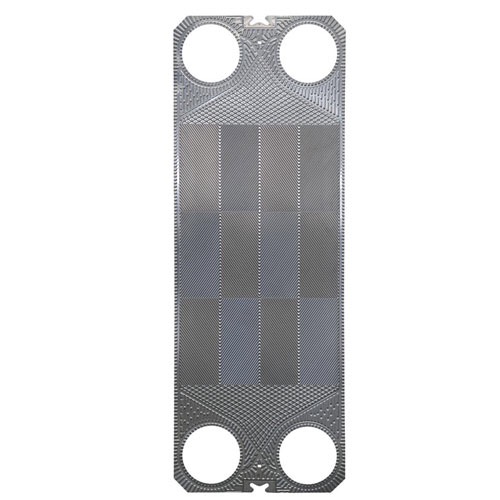

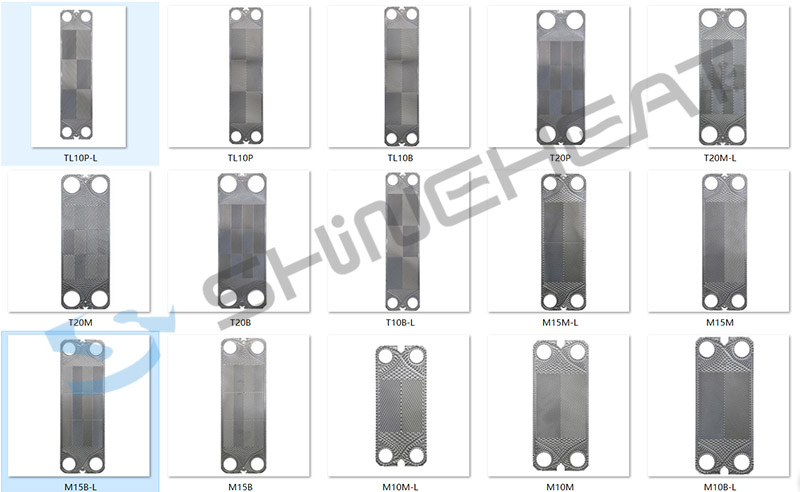

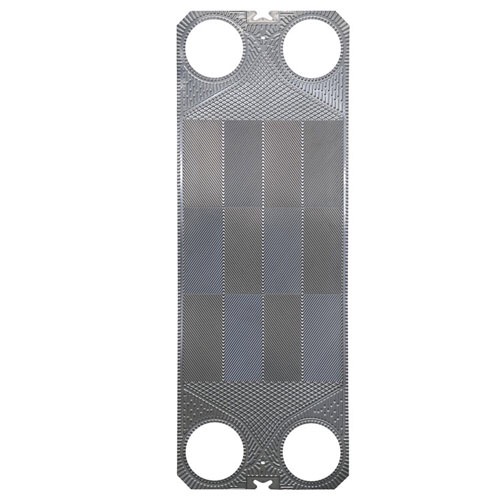

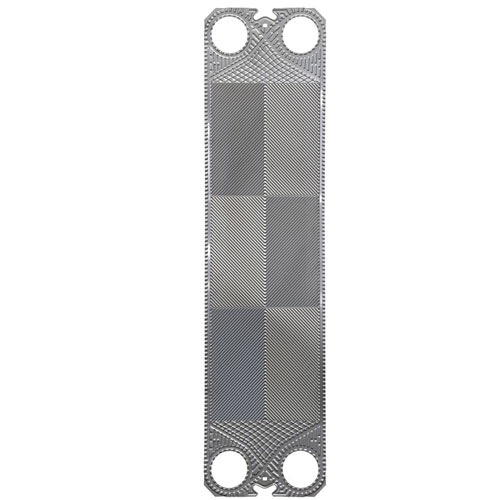

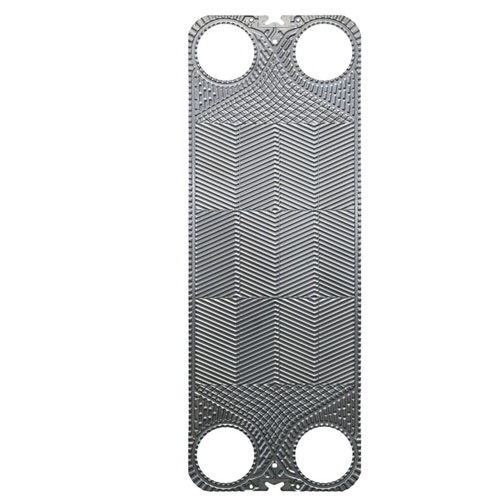

Spare Parts for Alfa Laval Plate Heat Exchanger.
Identical replacement Plates and Gaskets for Alfa Laval are available for service and mantainance.
Identical replacement Plates and Gaskets for Alfa Laval are available for service and mantainance.
PLATE AND GASKET SPECIFICATION |
||||||
Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area ( ㎡) |
Alfa Laval | M3 | 2.5 | φ29 | 357*60 | 429*125va | 0.032 |
M6M | 3 | φ58 | 640*140 | 747*247 | 0.15 | |
M6B | 2 | φ59 | 640*140 | 747*247 | 0.15 | |
TS6 | 4 | φ68 | 380*203 | 506*328 | 0.0856 | |
TL6B | 2 | φ58 | 1036*140 | 1148*248 | 0.25 | |
M10M | 4 | φ98 | 719*223 | 870*370 | 0.25 | |
M10B | 2.6 | φ97 | 719*223 | 870*370 | 0.25 | |
TL10B | 2 | φ109.5 | 1338*218 | 1500*373 | 0.5 | |
TL10P | 3 | φ105 | 1338*218 | 1500*373 | 0.5 | |
M15M | 4 | φ140 | 1294*298 | 1497*496 | 0.65 | |
M15B | 2.6 | φ140 | 1294*298 | 1498*496 | 0.65 | |
TL15B | 2 | φ155 | 2035*228 | 498*2250 | 1 | |
M20M | 4 | φ205 | 1479*353 | 1745*620 | 0.85 | |
T20B | 2 | φ209 | 1479*353 | 1749*621 | 0.9 | |
T20P | 3 | φ210 | 1479*353 | 1749*621 | 0.89 | |
TS20 | 4 | φ195 | 698.5*363 | 960*621 | 0.5 | |
AK20 | 4 | φ200 | 931.5*365 | 1215*664 | 0.5 | |
P16 | 2.5 | φ29 | 357*60 | 427*123 | 0.03 | |
P26 | 3 | φ70 | 592*135 | 709*248 | 0.13 | |
P36 | 4.55 | φ120 | 946*226 | 1124*400 | 0.32 | |
Clip6 | 4 | φ51 | 859*130 | 998*244 | 0.18 | |
Clip8 | 4 | φ78 | 1095*220 | 1245*370 | 0.37 | |
Clip10 | 4 | φ104 | 1324*324 | 1496*494 | 0.63 | |
Clip15 | 4.1 | φ150 | 1524*400 | 1747*620 | 0.91 | |
T2B | 2.6 | φ21 | 298*50 | 351*102 | 0.02 | |
T5B | 1.9 | φ55 | 546*101 | 643*193 | 0.05 | |
T5M | 3.1 | φ48 | 553*100 | 642*192 | 0.05 | |
T20S | 7.5 | φ170 | 1478*353 | 1740*616 | 0.8 | |
A15B/AM15B | 2.5 | φ160 | 1315*350 | 1552*587 | 0.71 | |
AM20B | 4 | φ210 | 1450*365 | 1750*669 | 0.86 | |
T8M | 4 | φ50 | 193*608 | 331*749 | |
