WELDED PLATE AND FRAME HEAT EXCHANGER APPLY FOR CHEMICAL PLANT
WELDED PLATE AND FRAME HEAT EXCHANGER
DETAIL
Original Application Data Sheet for Welded Plate and Frame Heat Exchanger
Plate Material: 0.8mm AISI 316L Plate
Frame Material: SA516
Actually This Welded Plate and Frame Heat Exchanger is condenser for Diluted Ethanol Vapor, the inlet Diluted Ethanol is Vapor phase which contain composition gas could corrode the Rubble Gasket.
So Shineheat collect the Full Welded Plate and Frame Heat Exchanger which could avoid rubber gasket corrosion, furthermore, it could more reliable for Vapor Sealing.
The Design Drawing for Welded Plate and Frame Heat Exchanger
The Product Photo for Welded Plate and Frame Heat Exchanger
| SIDE A | SIDE B | ||
| FLUID | Diluted Ethanol | Water | |
| FLOW RATE | Kg/h | 618.0 | 30000.0 |
| INLET TEMPERATURE | deg.C | 80.0 | 30.0 |
| OUTLET TEMPERATURE | deg.C | 40.0 | 36.0 |
| DENSITY | Kg/ m3 | 828/0.998 | 994.65 |
| SPECIFIC HEAT | Kj/(kg.K) | 3.5/1.7 | 4.176 |
| THERMAL CONDUCTIVITY | W/(m.K) | 0.19/0.02 | 0.62 |
| VISCOSITY | cP | 0.74/0.01 | 0.752 |
| PRESSURE DROP | KPa | 1.89 | 19.6 |
Plate Material: 0.8mm AISI 316L Plate
Frame Material: SA516
Actually This Welded Plate and Frame Heat Exchanger is condenser for Diluted Ethanol Vapor, the inlet Diluted Ethanol is Vapor phase which contain composition gas could corrode the Rubble Gasket.
So Shineheat collect the Full Welded Plate and Frame Heat Exchanger which could avoid rubber gasket corrosion, furthermore, it could more reliable for Vapor Sealing.
The Design Drawing for Welded Plate and Frame Heat Exchanger

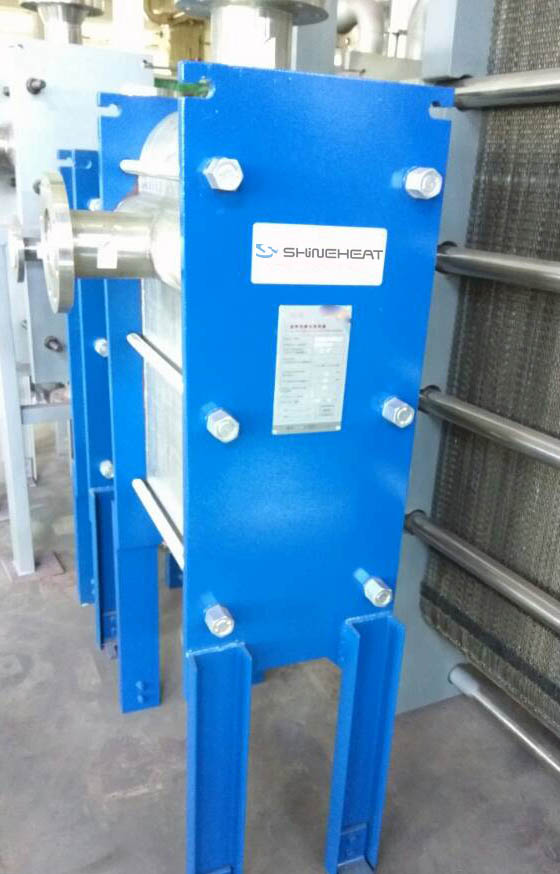

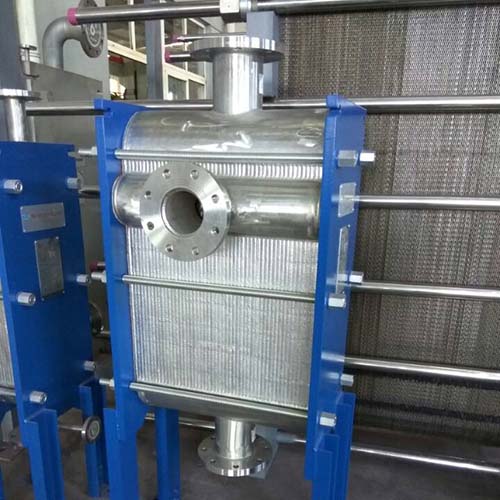

The Product Photo for Welded Plate and Frame Heat Exchanger
