Heating Isolation- Application for Welded Pillow Plate
In order to isolate the high temperature furnace heat contact with operators, reduce the environmental temperature, and to recycle furnace waste heat, we introduce such Special Isolation Screen
DETAIL
Project Background
Customers in order to isolate the high temperature furnace heat contact with operators, reduce the environmental temperature, and to recycle furnace waste heat, then let water heated from 20 °C to 40 ° C as daily using water in their plant.This design fully considers the field space, convenient installation of heat exchanger plates in parallel, simple movement and fixation of single plates, and collection and discharge of air condensate water.

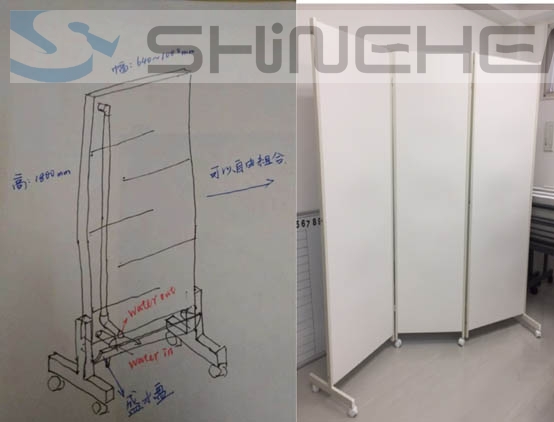

The Original Design Idea

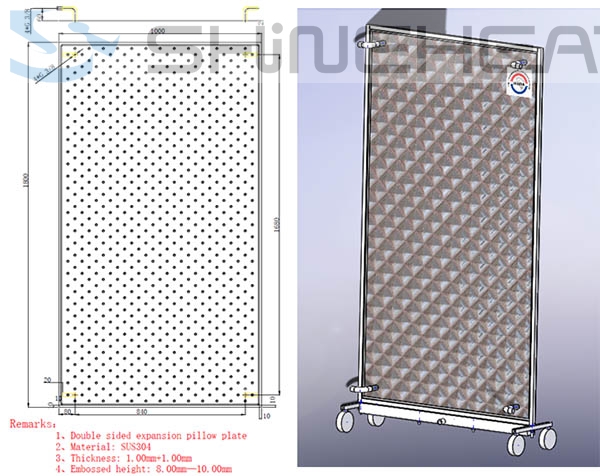

The Struture Design Process

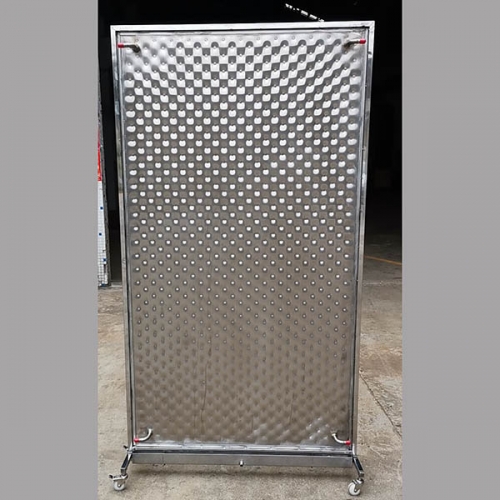

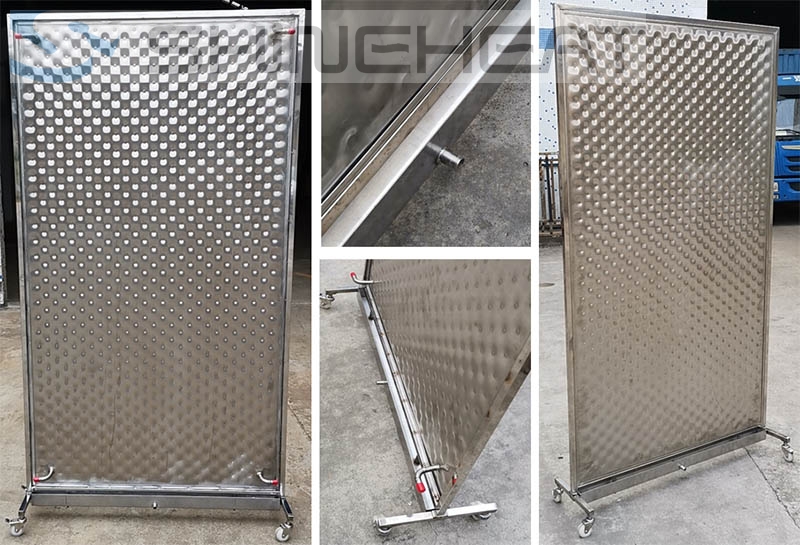

The Main Features of Heat Isolation Pillow Plate Screen
* Isolate Heat from Furnace, protect operator in Furnace workshop
* Recycle heating for hot water utilization in workshop
* Flexible Pillow Plate Combination for different area space
* Easy to move, mobility

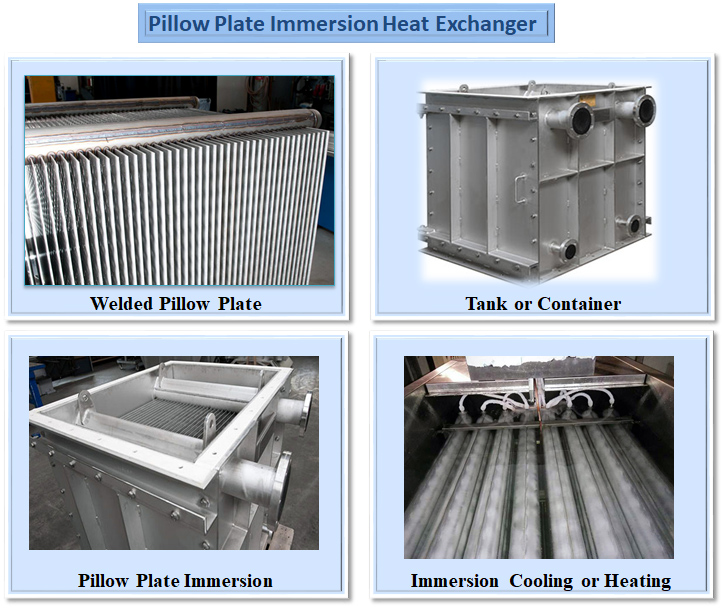

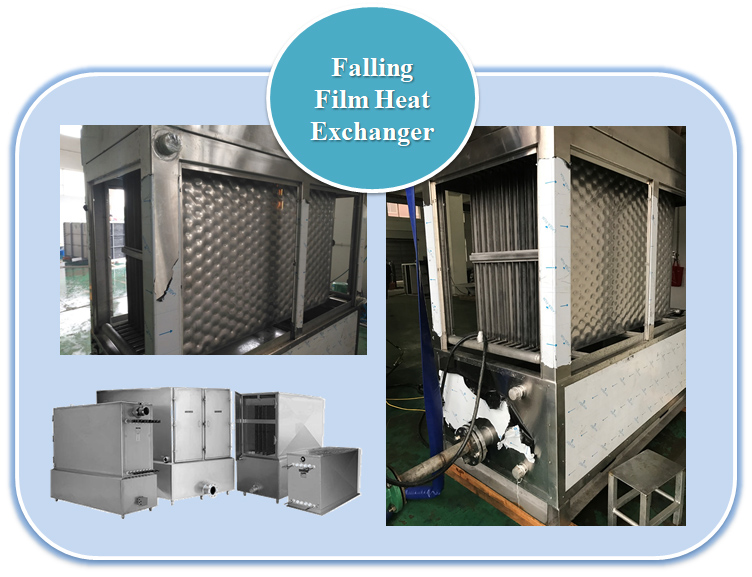

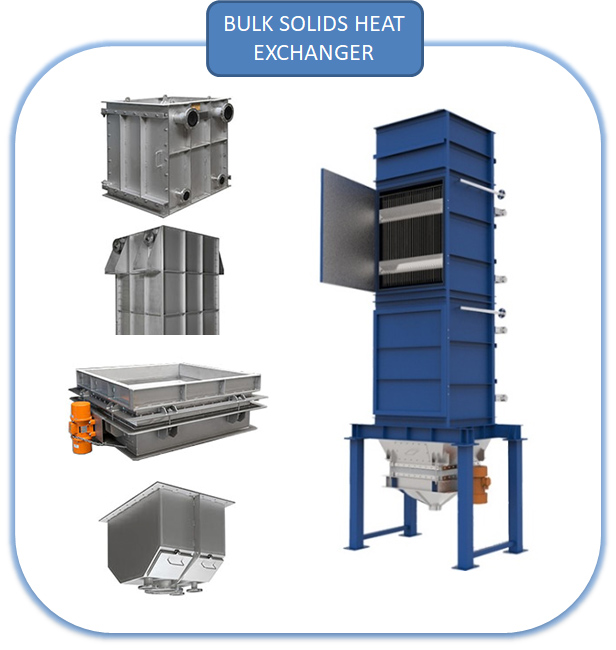

Other Important Applications for Welded Pillow Plates
AIR COOLING MODULE
FOR MORE DETAIL APPLICATIONS, PLEASE CONTACT WITH US.......
