SHINEHEAT AIR COOLER
Air Cooler-"Air Wave" Welded Plate and Frame Heat Exchanger
DETAIL

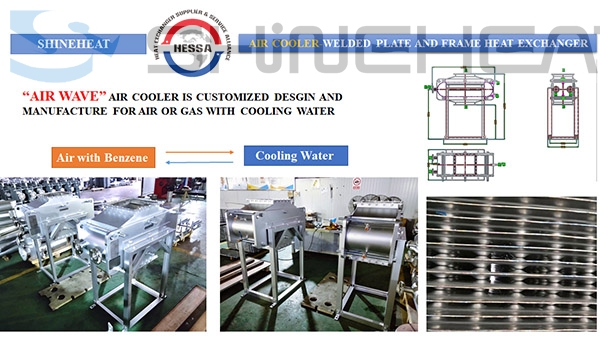

SHINEHEAT “AIR WAVE” AIR COOLER, WELDED PLATE AND FRAME HEAT EXCHANGER
The Job Description:
It is typical application for air cooler in Petrochemical Plant; the hot side is Air with Benzene, which produced in chemical process, the temperature of hot air will be cooled down from 40℃ to 10℃ by cooling water.
For this case, SHINEHEAT proposed two air cooler solutions, we could choice “Flue Gas Heat Exchanger” which made by Welded Pillow Plate; we also could choice “Air Wave Air Cooler” which made by Bubbled Corrugated Plates
In practical application concerns
The Highlights for Thermal Design for Air Wave Air Cooler
Finally, the Start-Up and Commissioning running is very successfully, especially the Thermal performance is satisfactory.
TAIWAN HESSA supervises the air cooler Start-up and Commissioning
VIDOE DEMONSTRATION
The Job Description:
It is typical application for air cooler in Petrochemical Plant; the hot side is Air with Benzene, which produced in chemical process, the temperature of hot air will be cooled down from 40℃ to 10℃ by cooling water.

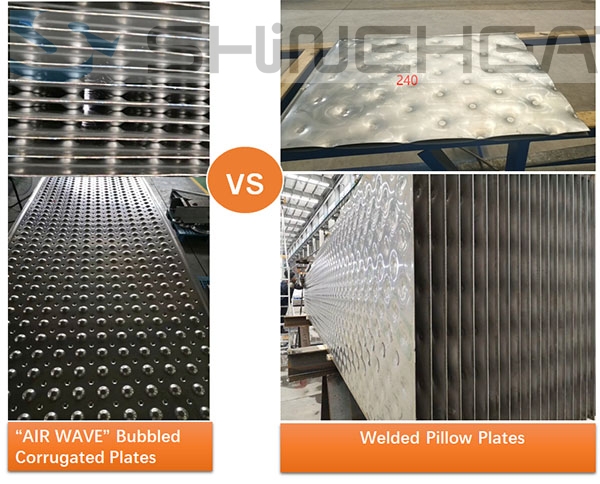

For this case, SHINEHEAT proposed two air cooler solutions, we could choice “Flue Gas Heat Exchanger” which made by Welded Pillow Plate; we also could choice “Air Wave Air Cooler” which made by Bubbled Corrugated Plates
In practical application concerns
- Manufacturing Cost, the project has limited budget for equipment. Shineheat Air Wave offer a compared economical solution;
- Pressure Drop and Thermal Efficient, Shineheat will balance Pd and Q value in comprehensive way, and then select a premium solution;
- Differential Pressure Consideration, considering more than 5 bar differential pressure of two sides, Air Wave Air Cooler will be preferred solution;
- Maintenance and Service, Shineheat also took future maintenance and service into design consideration in view of Non-Clean working condition in air side.

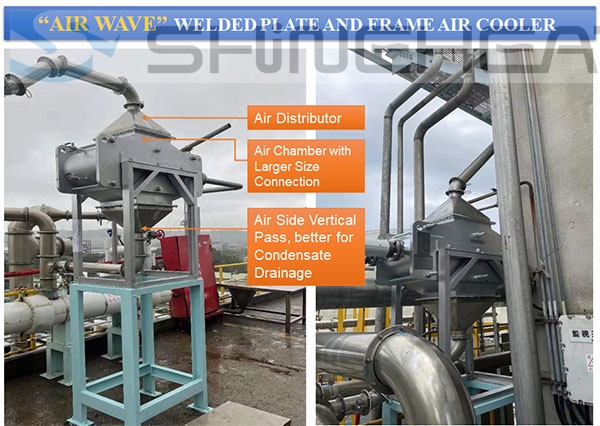

The Highlights for Thermal Design for Air Wave Air Cooler
- Even Distribution for Air Inlet,
- Enough transfer area during transferring process, not “short cut” and “dead spot”
- Separation for condense and air in outlet
- Vertical design for installing convenience
Finally, the Start-Up and Commissioning running is very successfully, especially the Thermal performance is satisfactory.

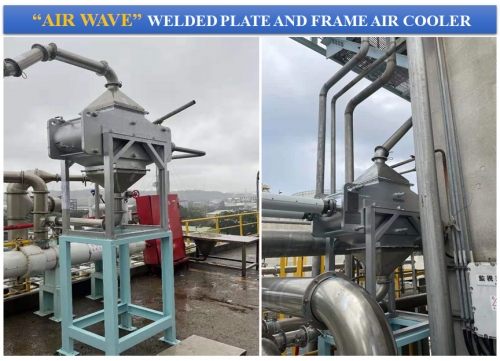

TAIWAN HESSA supervises the air cooler Start-up and Commissioning
VIDOE DEMONSTRATION
